Cutting Edge .224 50gr ESP Raptor (50)

Category FB RAPTOR®

ESP Raptor™ 50-gr Flat Base designed to shoot with or without Raptor™ tips. Tipless works great in lever guns; with tips it mag-feeds in bolt actions. Does not mushroom: after 1–2″ it sheds 6 blades while the base continues straight. G1 BC .200. Minimum impact ≥ 1,500 fps. Required twist: 1:9″ or faster; not recommended in ≤ 1:6″. 50 tips included (uninstalled) to increase BC when installed.

Caliber
FEED
Min TWIST
Grains

100% Secure Payment via PayZen

Secure Bank Transfer (SEPA)

Use / positioning
.224 – 50-gr predator/medium game bullet for 0–600 yd, pairing a flat trajectory with controlled fracturing (6 blades).

Design & materials

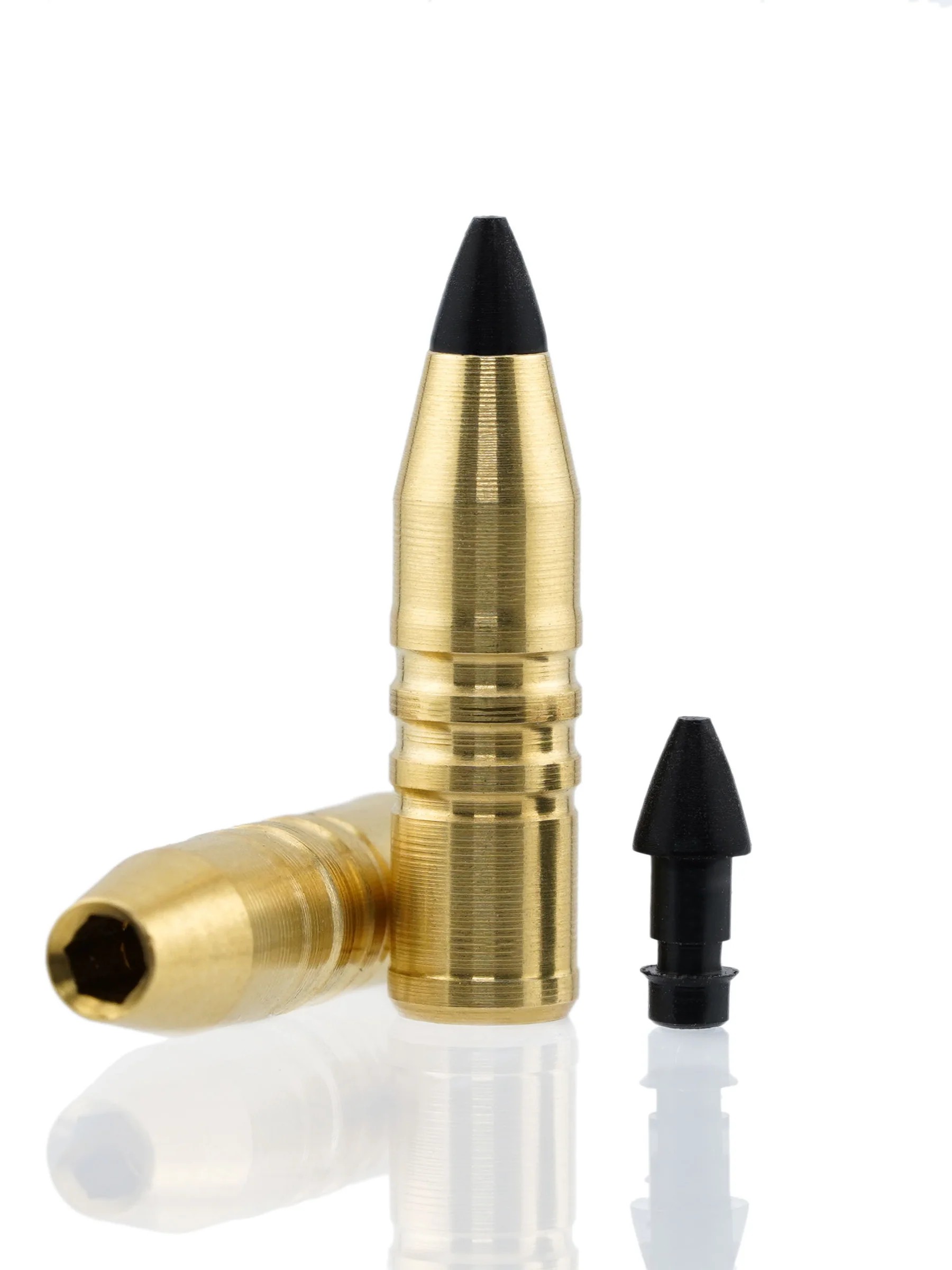

Monolithic brass, CNC Swiss lathe turned from solid bar. BBW#13 nose for maximum penetration. Tipped hollow point; Raptor™ tips included uninstalled (install via press or light force on a flat surface).

Terminal behavior

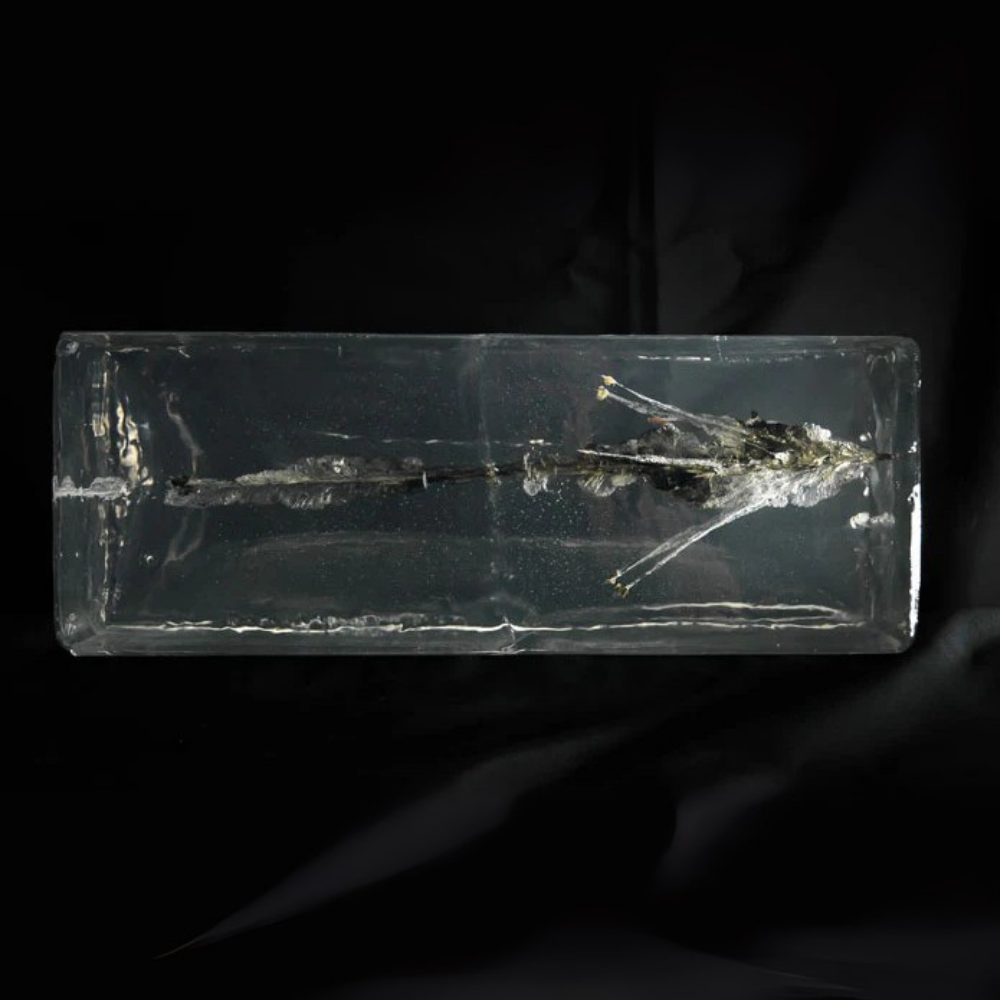

After 1–2″ of penetration, 6 blades radiate outward while the base tracks straight. Works at ≥ 1,500 fps impact.

Ballistic performance
BC: G1 .200 / G7 —. Effective range: up to 600 yd.

Barrel / stability
Required twist: 1:9″ or faster. Not recommended for ≤ 1:6″ twist barrels.
Caution: verify your rifle’s freebore and chamber.

Dimensions
Bullet OAL: 0.764″ (~ 19.41 mm).
Projection length: 0.340″ (~ 8.64 mm).
Weight: 50 grains (~ 3.24 g).

Box & compliance

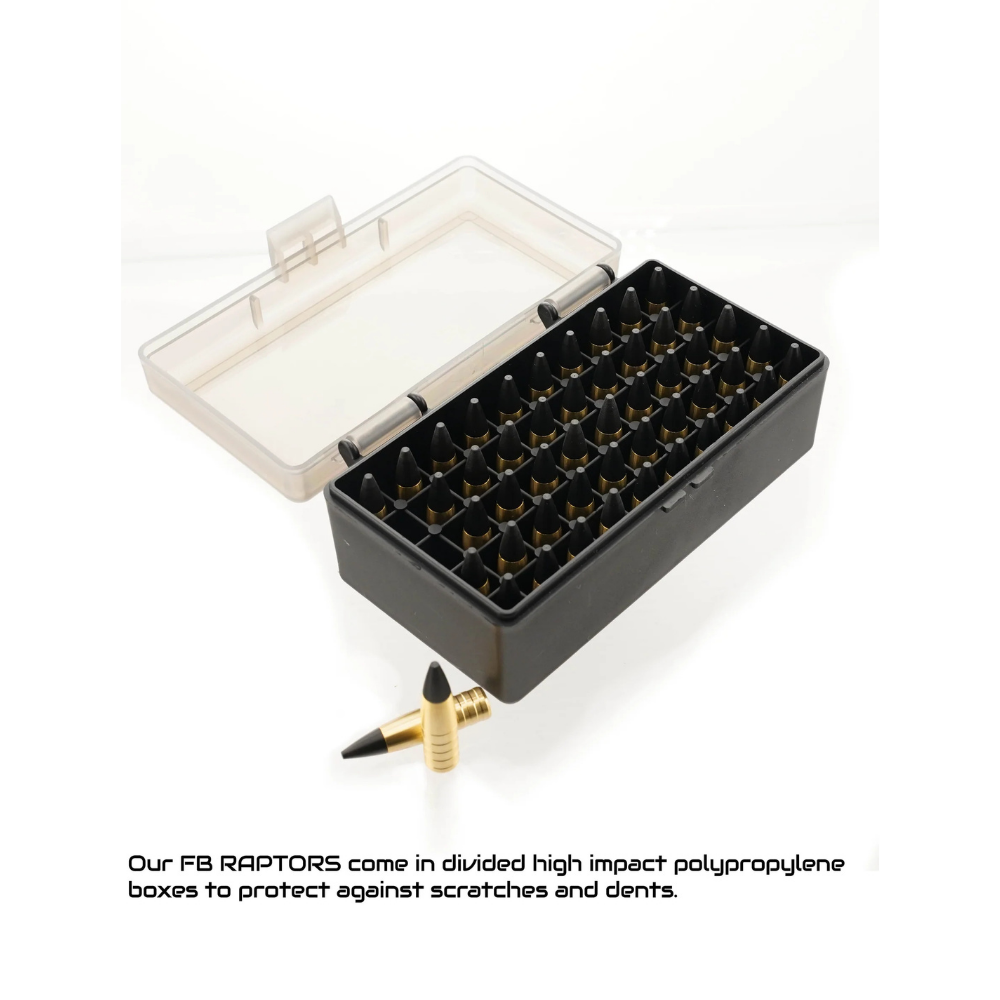

Box of 50 bullets + 50 Raptor™ tips (uninstalled) (bullets only, no powder/primer).

  • .224 — 50 gr ESP Raptor™, Flat Base, tipped HP

  • G1 BC .200 ; G7: n/a

  • OAL 0.764″ ; projection 0.340″

  • Twist 1:9″+ ; not recommended ≤ 1:6″

  • 6 blades after 1–2″ ; ≥ 1,500 fps

  • Tips included (uninstalled) ; mag-feed in bolts / lever tipless
