Cutting Edge .224 55gr FB Raptor (50)

Category FB RAPTOR®
CUTTING EDGE BULLETS

FB Raptor™ 55-gr Flat Base, engineered to mag-feed in AR-15 rifles. Does not mushroom—after 1–2″ it sheds 6 blades while the base drives straight for deeper penetration. G1 BC .120. Minimum impact ≥ 1,500 fps. Required twist: 1:11″ or faster; not recommended in barrels faster than 1:6″. No Raptor™ tips included.

Caliber
FEED
Min TWIST
Grains

Use / positioning
.224 – 55-gr hunting/predator bullet for 0–600 yd, with reliable AR-15 magazine feeding thanks to the flat-base FB design.

Design & materials

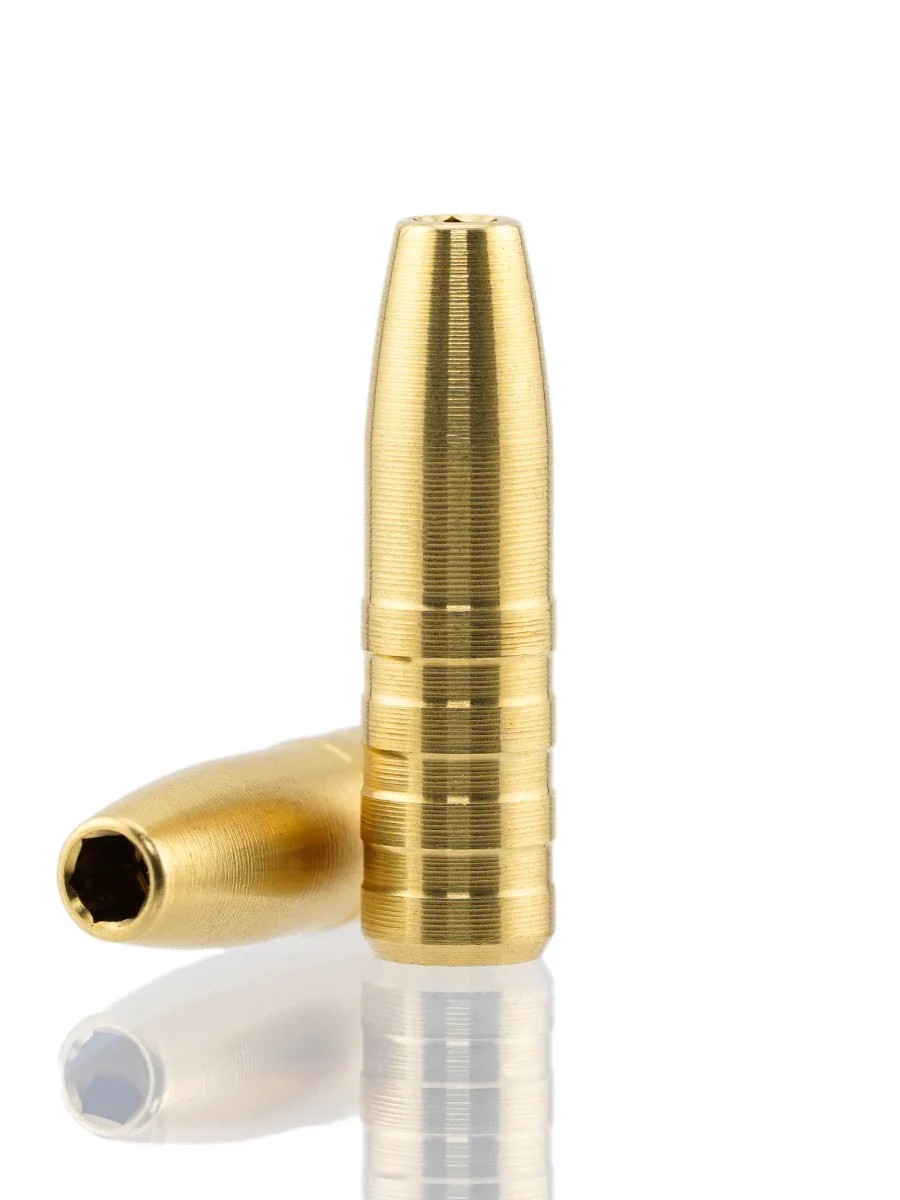

Monolithic brass, CNC Swiss-lathe turned from solid bar. BBW#13 nose profile for maximum penetration. Hollow point (no tip installed).

Terminal behavior

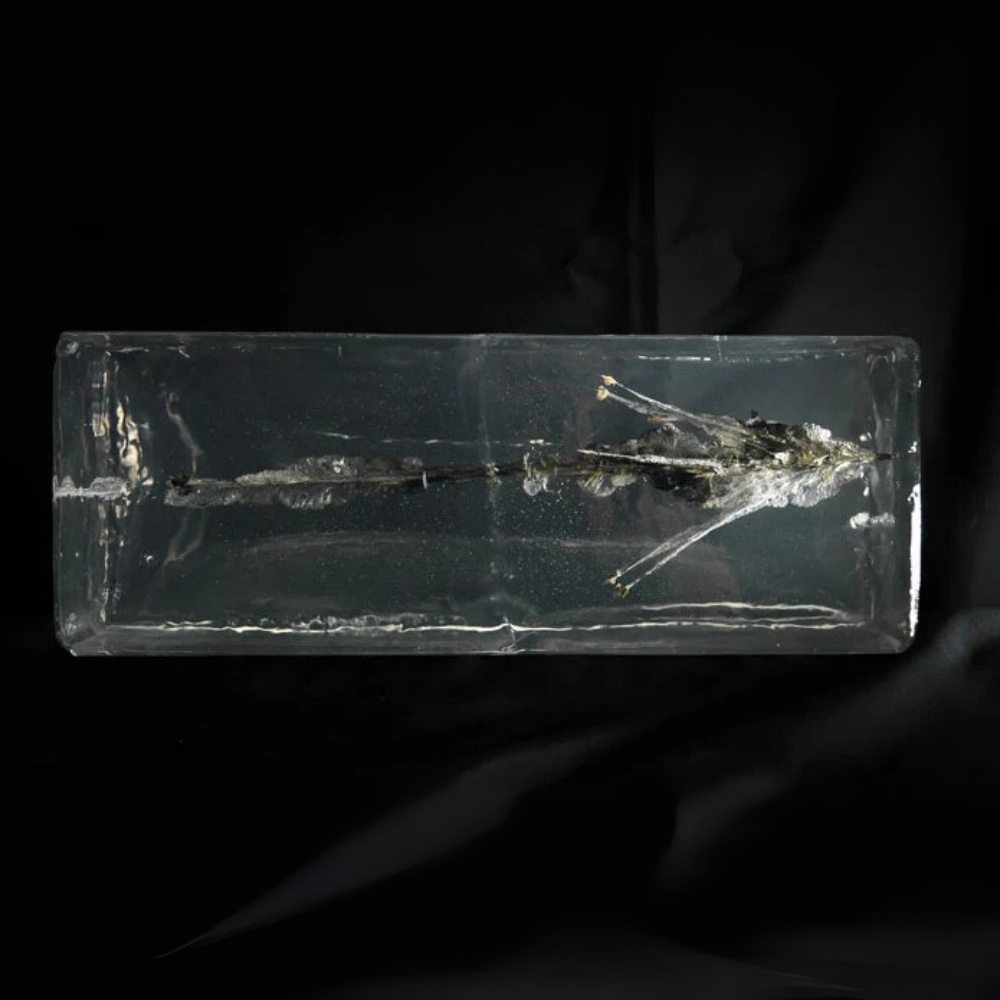

After 1–2″ of penetration, 6 blades radiate outward while the base tracks straight. Functions at ≥ 1,500 fps.

Ballistic performance
BC: G1 .120 / G7 —. Effective to 600 yd.

Barrel / stability
Required twist: 1:11″ or faster. Not recommended for ≤ 1:6″ twist barrels.
Caution: verify your rifle’s freebore and chamber.

Dimensions
Bullet OAL: 0.827″ (~ 21.01 mm).
Projection length: 0.490″ (~ 12.45 mm).
Weight: 55 grains (~ 3.56 g).

Box & compliance

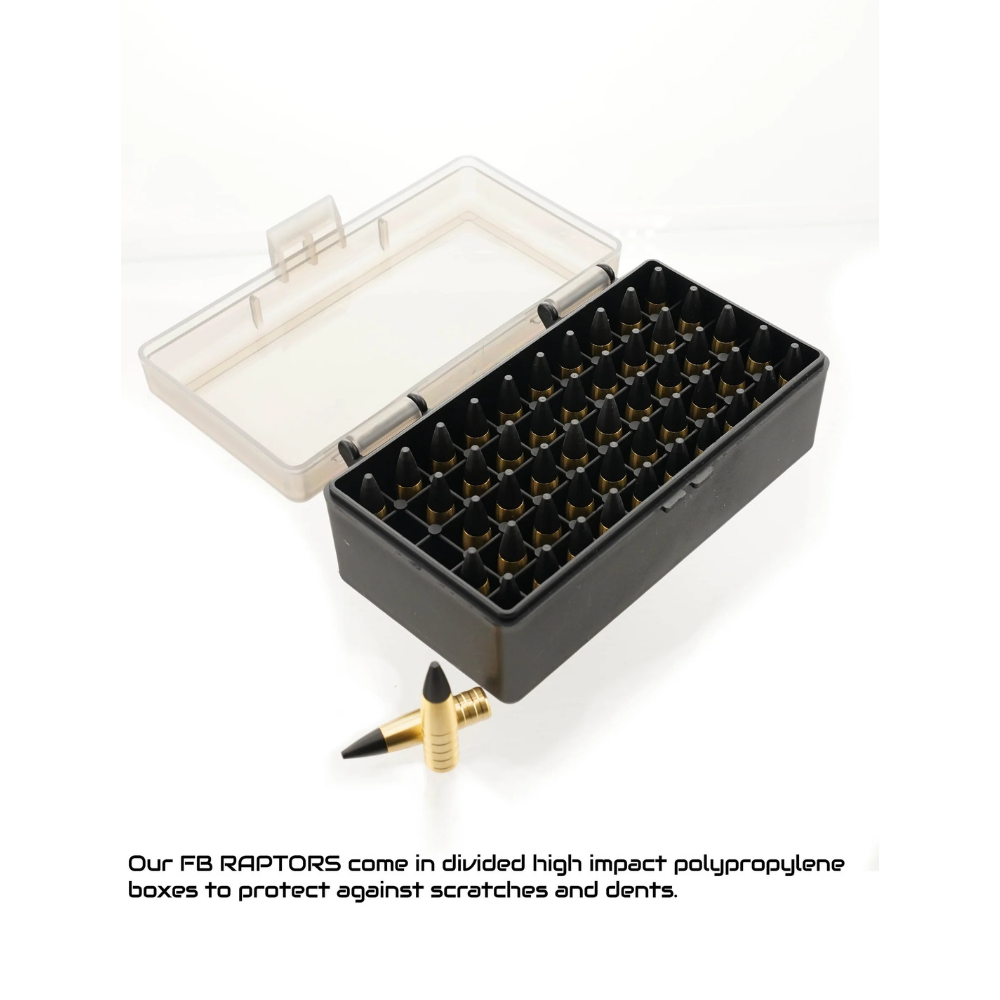

Box of 50 bullets (bullets only, no powder/primer). No Raptor™ tips included.

  • .224 — 55 gr FB Raptor™, Flat Base

  • G1 BC .120

  • OAL 0.827″ ; projection 0.490″

  • Twist 1:11″+ ; not recommended ≤ 1:6″

  • 6 blades after 1–2″ ; ≥ 1,500 fps

  • Designed to mag-feed in AR-15

We strive to represent each product as accurately as possible; minor differences may occur (colors, finishes, markings). Images are illustrative; accessories not included. Dimensions and specifications are indicative and may change without notice.

Manufacturer technical files

These files are provided “as is,” without substantive modification. If inconsistencies arise, only the manufacturer’s latest official specifications prevail. Versions, part numbers, features, and visuals may change without notice. BHI does not guarantee the accuracy, completeness, or continuous availability of these documents and cannot be held liable for their use. Rights and content remain with their respective owners.

BHI technical files

While we take great care to deliver an accurate and faithful synthesis, these documents are provided for informational purposes and may include approximations, rounding (notably in imperial↔metric conversions), and residual errors. They are not a substitute for the manufacturer’s manuals or official specifications. Part numbers, dimensions, tolerances, compatibility, and performance data are indicative and may change without notice. Before any use, verify alignment with your firearm/equipment and the most recent manufacturer documentation. BHI disclaims liability for misuse, misinterpretation, or direct/indirect damages; the user is solely responsible for regulatory compliance, safety, and testing.
