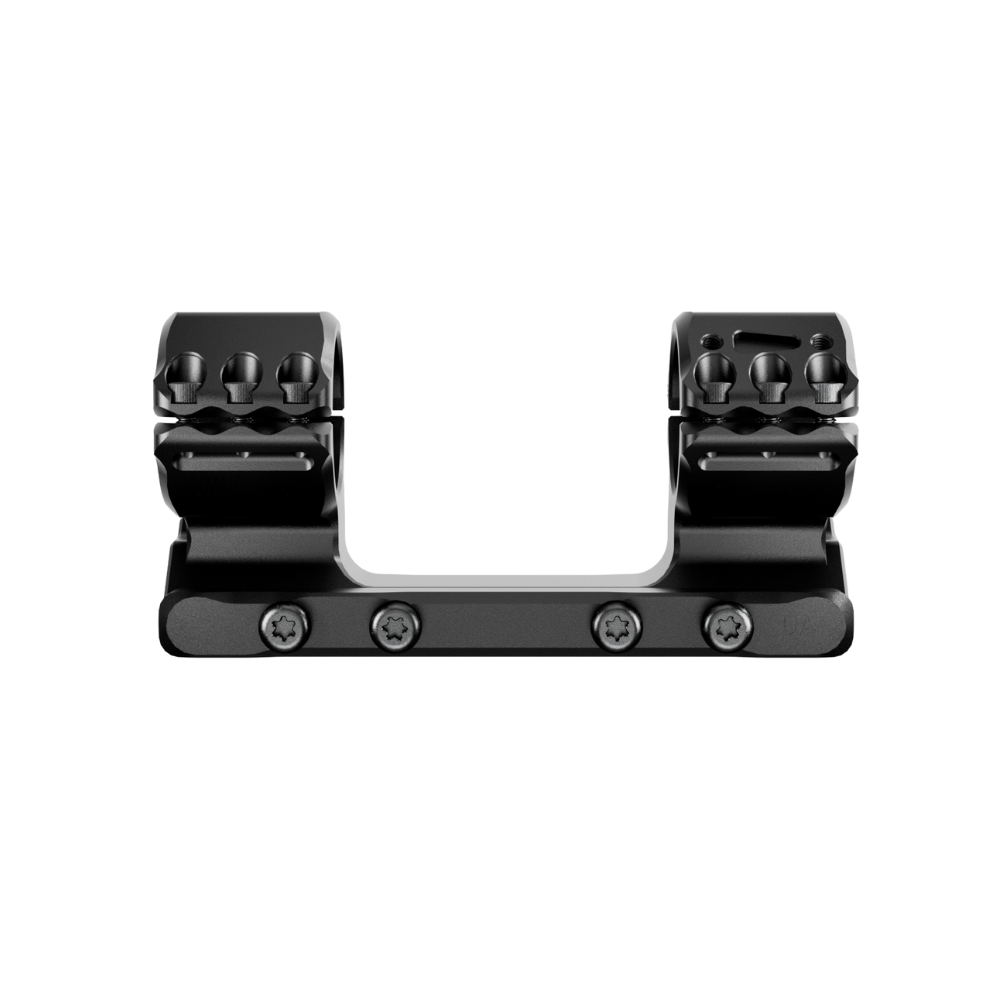

MSM - 01 / Monobloc scope mount

Category MONOBLOCS Reference D-MSM01-B-343820 SKU D-MSM01-B-343820
DAVIKA

The MSM-01 is a premium one-piece scope mount engineered for long-range professionals. Made from aerospace-grade 7075-T6 aluminum, it delivers superior strength, repeatable precision, and rugged durability. Designed for bolt-action rifles, the MSM-01 integrates DAVIKA’s patented SMAI mounting interface—transforming it into a modular platform capable of hosting mission-critical accessories. With tilt options for advanced vertical adjustments, reinforced recoil absorption, and 12-point scope fixation, MSM-01 ensures perfect alignment, structural rigidity, and scope protection in even the harshest conditions.

Tube diameter
Cant
Height
Color

The MSM-01 scope mount represents the culmination of elite engineering for precision shooters operating in extreme environments. Constructed from 7075-T6 aluminum—the strongest alloy in its class—it offers nearly double the tensile strength of cast aluminum, ensuring maximum rigidity and zero deformation under heavy recoil. Hard anodizing protects its surface against scratches, impacts, and environmental exposure, while micron-level manufacturing accuracy guarantees optical alignment and consistent shot placement.

The mount features two built-in recoil lugs and a patented lower geometry that locks perfectly onto the Picatinny rail, delivering exceptional installation repeatability. Internally, the ring surfaces have specialized notches for secure scope retention, while the ring geometry eliminates any possibility of tube damage during mounting. With 12 premium black-coated screws securing the scope, structural integrity is uncompromised even under stress.

What truly sets the MSM-01 apart is the inclusion of the DAVIKA SMAI mounting interface. This feature turns the mount into a mission-ready platform, enabling integration of tactical accessories such as rangefinders, bubble levels, illumination tools, and more. Available with tilt configurations, it enhances elevation travel for extended-range precision shots—making it an indispensable component for long-distance competitive shooters, military marksmen, and serious enthusiasts seeking uncompromising performance.

Material

7075-T6 aluminum (aerospace grade)

Finish

Type III hard anodizing (black)

Fasteners

Stainless Torx, black-coated

Standard

MIL-STD-1913 Picatinny interface

MSM-01: Bolt-action, classic one-piece monoblock for precision/long range and repeatability.
MSM-02: AR-10 / AR-15, cantilever monoblock for correct eye relief on ARs.
MSM-03: Bolt-action, QD monoblock for frequent optic swaps while maintaining zero.
MSM-04: AR-10 / AR-15, cantilever QD monoblock for AR ergonomics plus quick detach.
RSM-01: Separate scope rings when monoblock is impractical or ring spacing must be adjusted.

All : 7075-T6 aluminum, hard anodizing, micron-level CNC. Monoblocks include integrated recoil lugs and patented lower geometry for repeatability; rings and monoblocks use notched ring interiors and 12 ring screws (per mount or pair for rings).

Bolt-action: choose straight monoblock (MSM-01) or QD monoblock (MSM-03); use RSM-01 rings when ejection or spacing requires rings.
AR-10 / AR-15: choose cantilever (MSM-02) or cantilever QD (MSM-04).
Tilt: use when you need more elevation for very long range; beginners typically start at 0 MIL; check if your rail already has tilt.

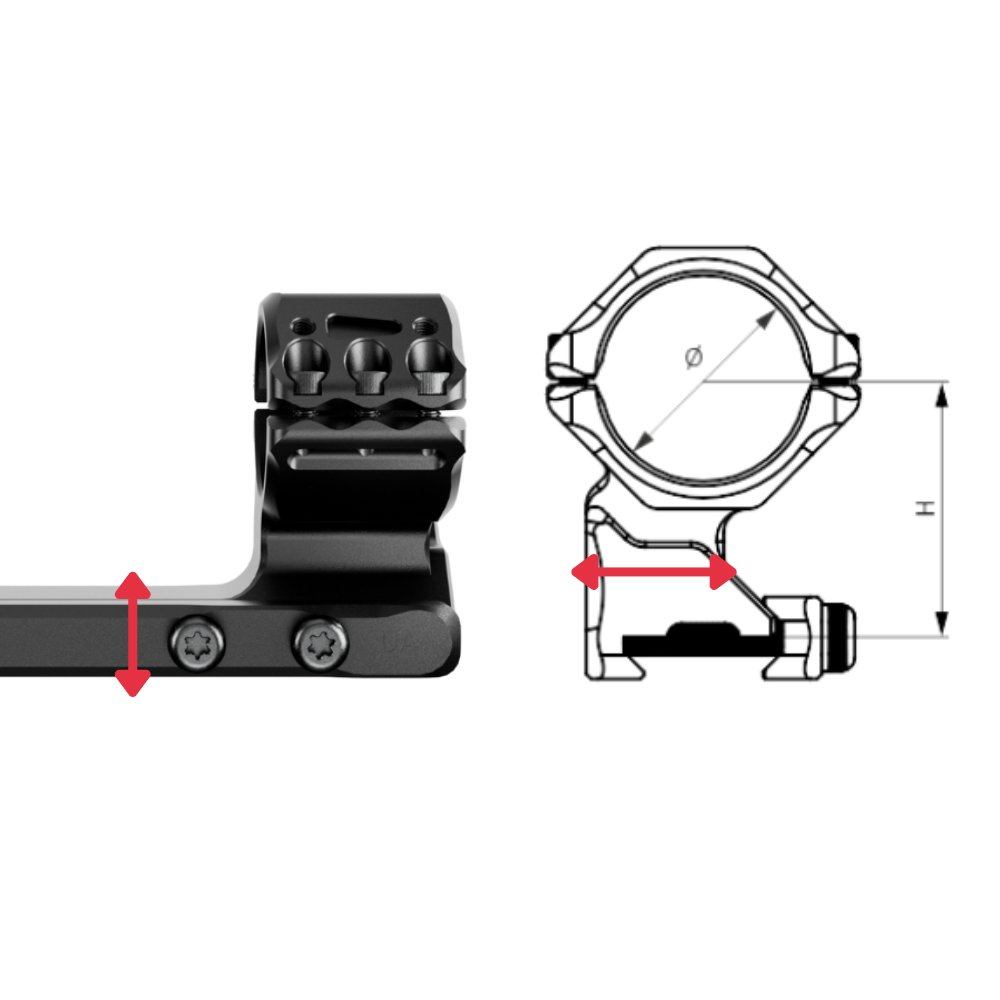

Height: pick 30/34/38 mm to suit platform and shooter; 38 mm is generally most comfortable on ARs.

MSM-01: 0 / 3 / 6 / 9 MIL (≈ 0 / 10.3 / 20.6 / 30 MOA)
MSM-02: 0 / 6 MIL (≈ 0 / 20.6 MOA)
MSM-03: 0 / 6 MIL (≈ 0 / 20.6 MOA)
MSM-04: 0 / 6 MIL (≈ 0 / 20.6 MOA)
RSM-01: 0 MIL

MSM-01: 30 / 34 / 35 / 36
MSM-02: 30 / 34 / 35 / 36
MSM-03: 30 / 34 / 35 / 36
MSM-04: 30 / 34 / 35 / 36
RSM-01: 30 / 34 / 40

MSM-01: 30 / 34 / 38
MSM-02: 38
MSM-03: 34 / 38
MSM-04: 38
RSM-01: 30 / 34 / 38

QUICK DETACH (QD) :

MSM-01: No
MSM-02: No
MSM-03: Yes (adjustable tension with safety)
MSM-04: Yes (adjustable tension with safety)
RSM-01: No

CANTILEVER :

MSM-01: No
MSM-02: Yes
MSM-03: No
MSM-04: Yes
RSM-01: Not applicable

GUIDE : Choose The RIGHT DAVIKA Scope Mount

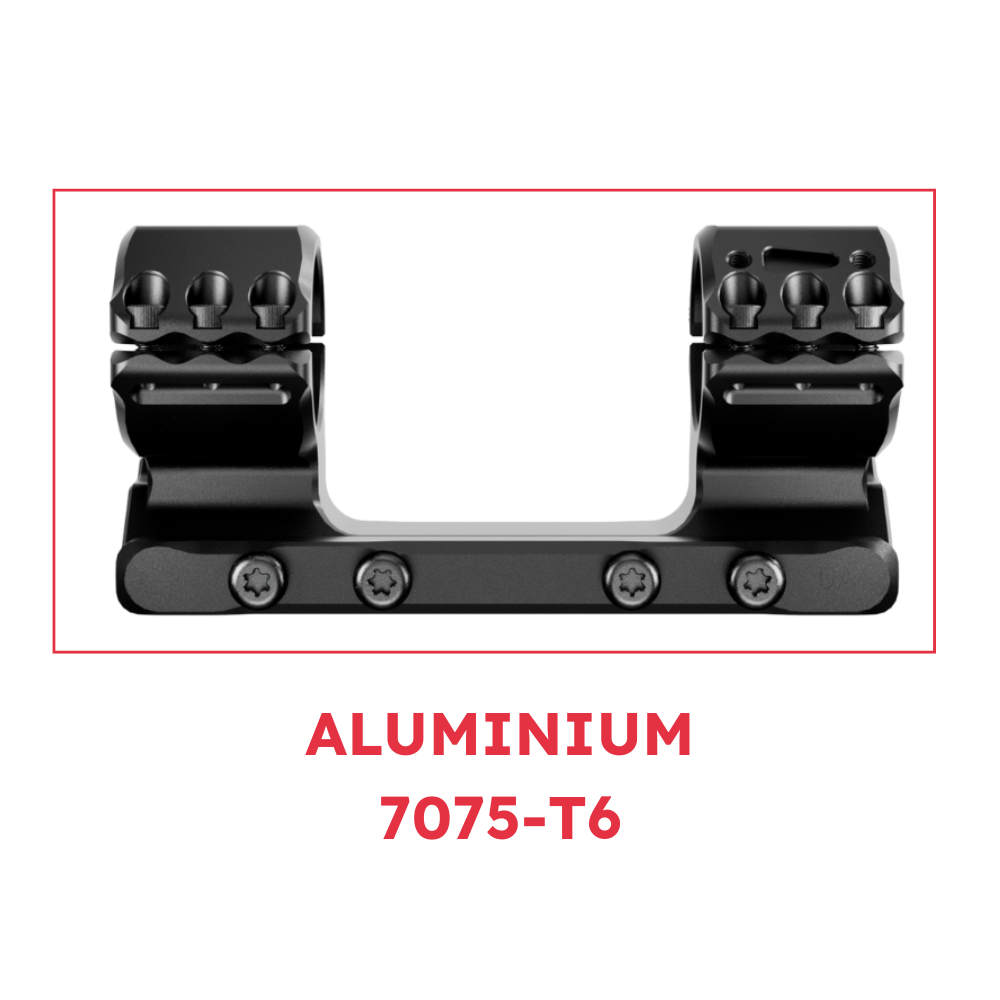

The mounts are machined

from a single solid block of 7075-T6 aerospace-grade aluminum, ensuring exceptional strength and precision.

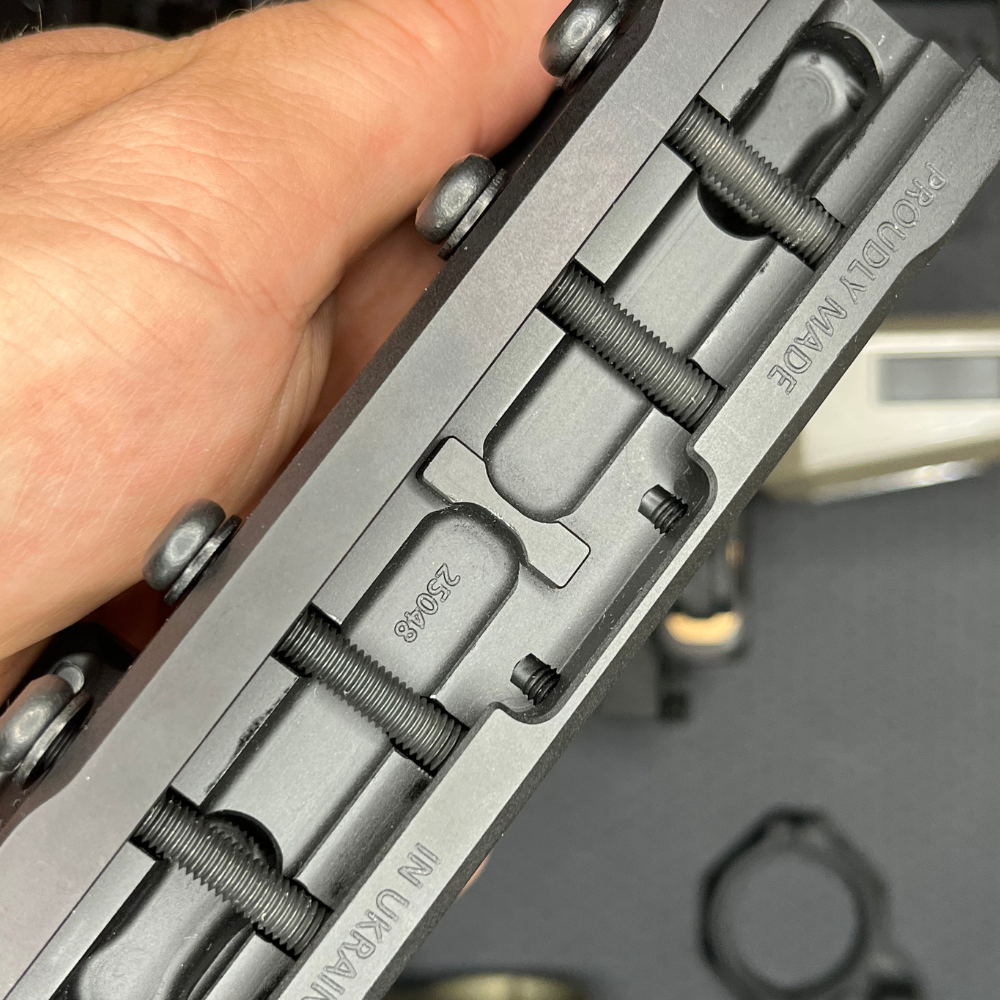

The GEN 2

mounts feature centrally positioned integrated recoil lugs, improving alignment and repeatability. These updated models are now available for purchase.

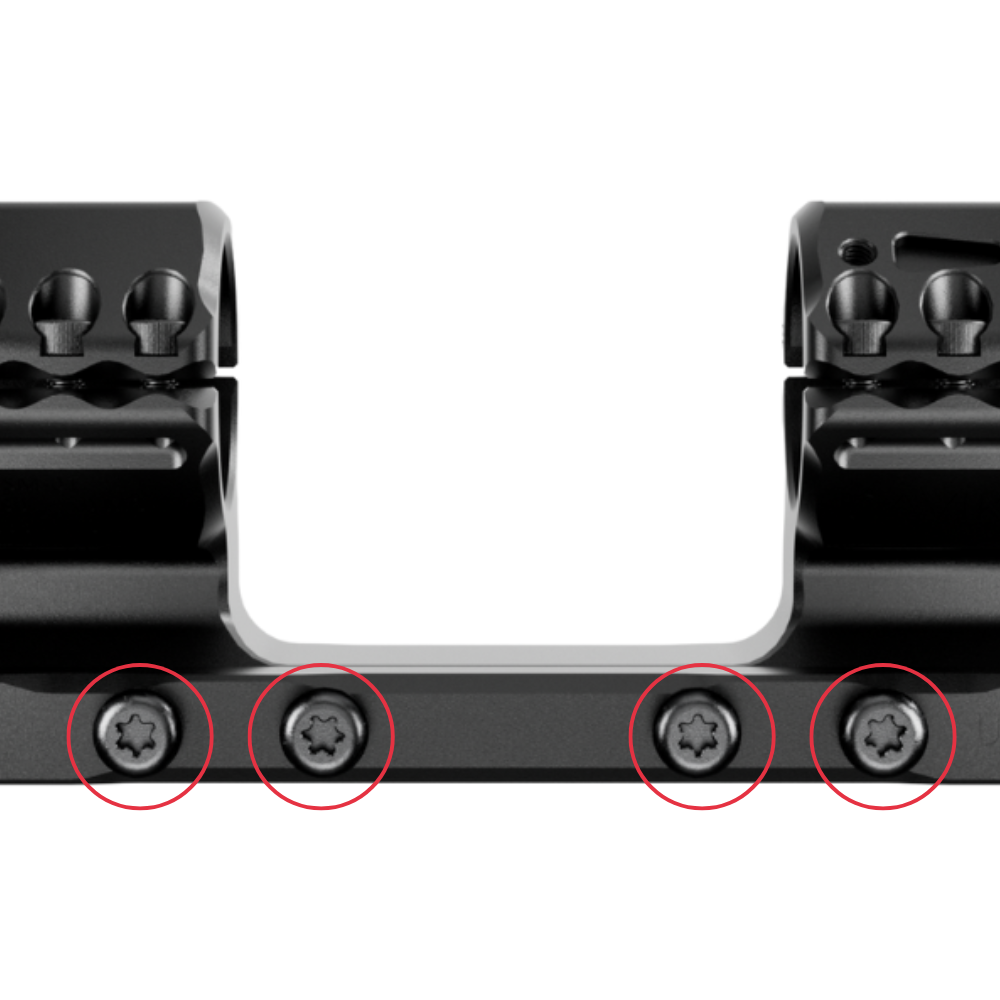

4 sturdy M5

Torx screws to secure the mount to the picatinny rail.

3 M4

Torx screws on each side of the rings for a total of 12 clamping points on the scope tube.

All parts are hard anodized

(Type III): surface very resistant to abrasion and better protected in harsh environments.

Optimized dimensions

and structural supports maximize rigidity while minimizing unnecessary weight.

Stainless steel

Torx-head screws with a high-quality black surface finish. The use of stainless steel and quality surface treatment prevents thread oxidation and ensures consistent torque and long-term tightening stability.

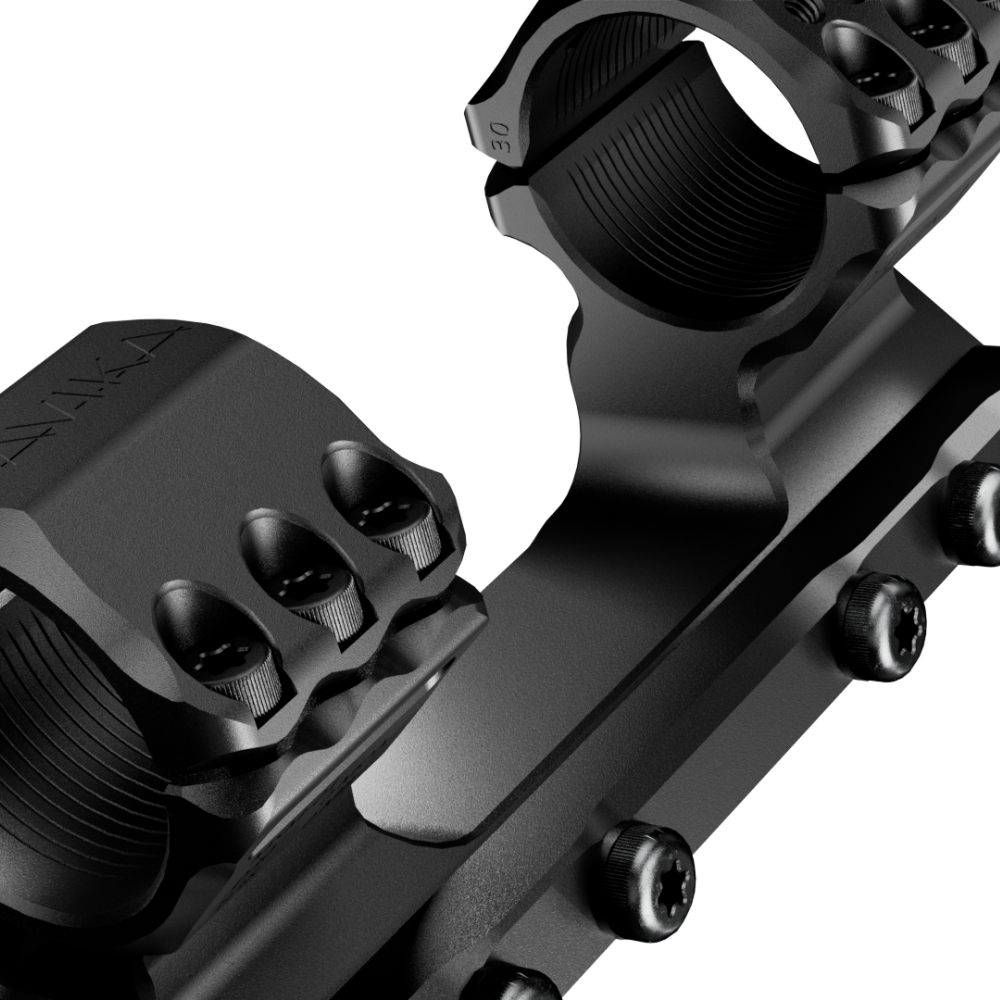

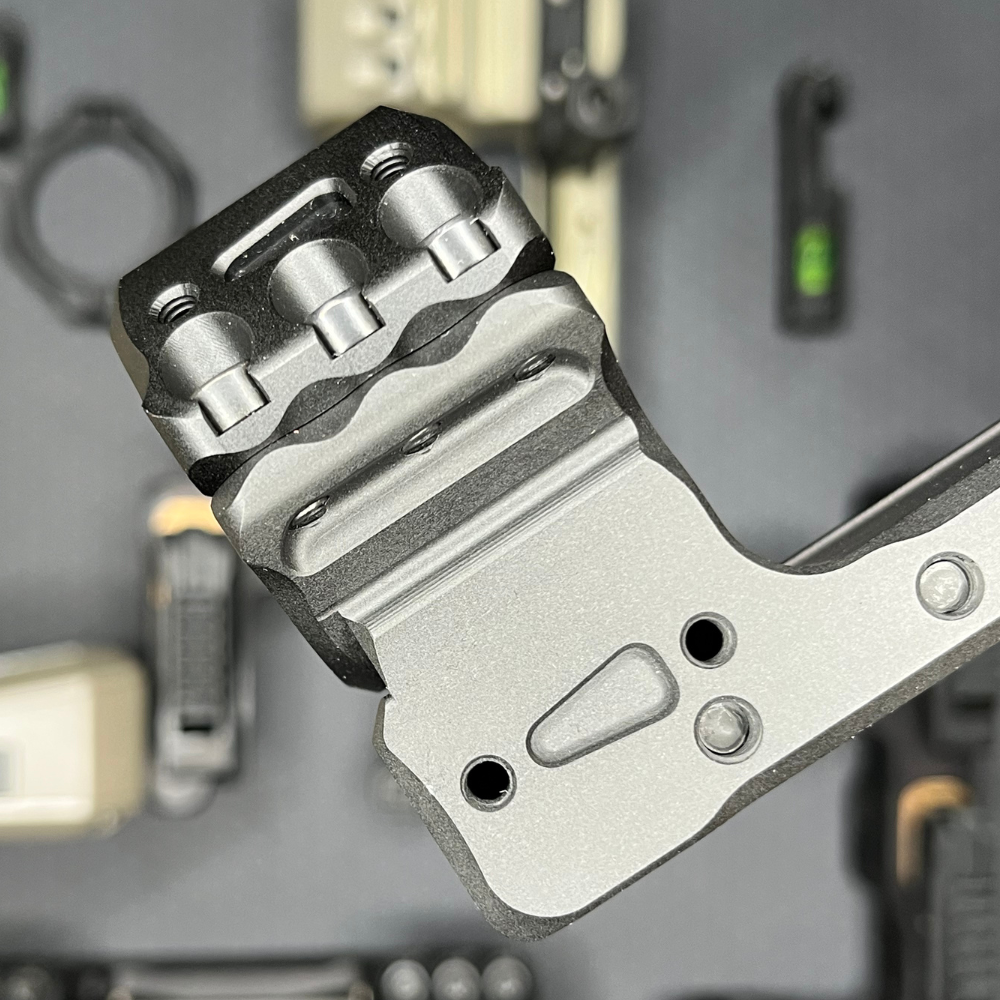

The finely machined internal grooves

create a more stable and consistent contact with the scope tube, eliminating point loads and ensuring a firm grip through precise geometry.

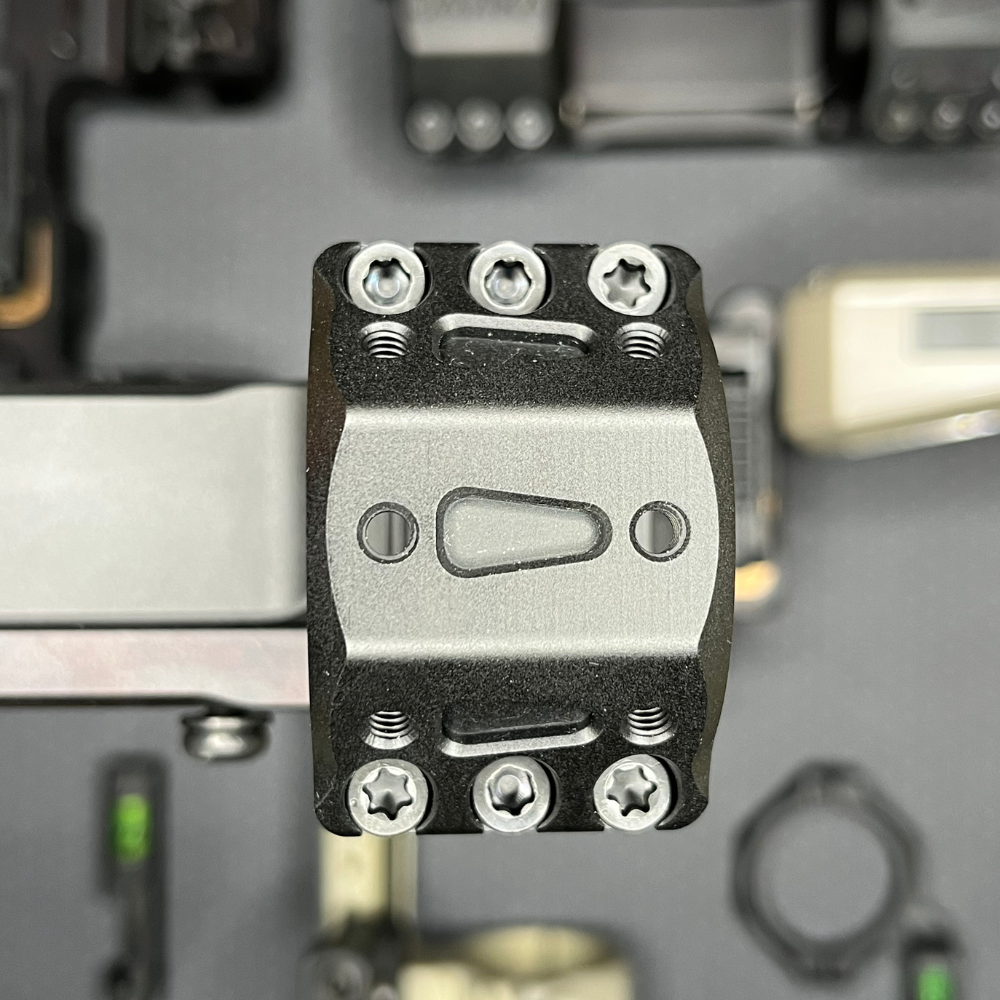

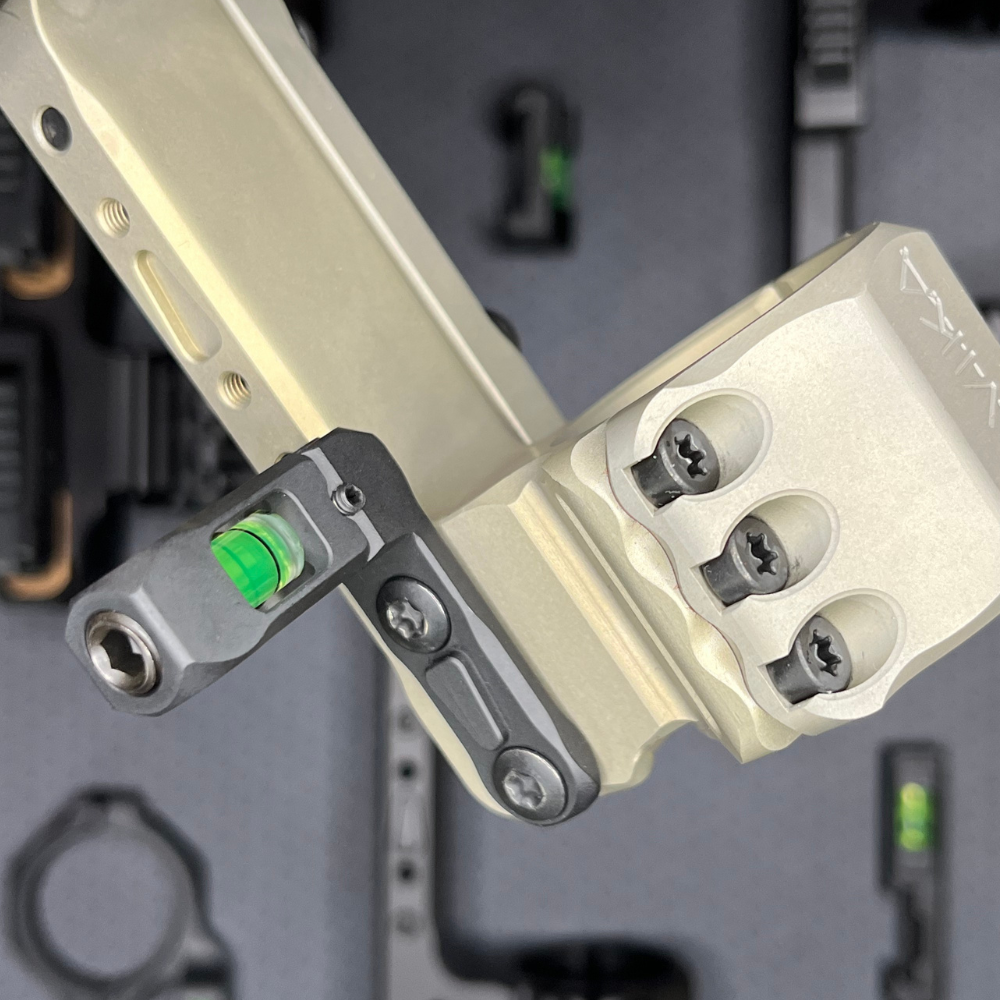

A proprietary Scope Mount Accessory Interface

(SMAI) with geometric indexing (triangles) to absorb recoil other than by the screws and guarantee the same positioning of accessories each time they are disassembled/reassembled.

Designed with multiple integrated accessory

mounting points, offering flexibility for customization and add-ons.

A continuously evolving ecosystem

of rails and accessories designed for the proprietary SMAI interface, with additional modules and attachments under active development.

Designed according

to the STANAG 4694 picatinny standard.

TORX BIT INCLUDED

with each mount
