DAVIKA

DAVIKA - MSM - 02 / Monobloc scope mount AR-10/15

Category MONOBLOCS SKU D-MSM02-B-303800

The MSM-02 is a premium monobloc scope mount tailored for professional shooters using AR-style rifles. Engineered from aerospace-grade 7075-T6 aluminum, it combines lightweight agility with maximum structural rigidity. Its cantilever design ensures perfect eye relief, enhanced comfort, and optimal scope placement. Featuring DAVIKA’s patented SMAI modular interface, it transforms into an accessory-ready platform. With integrated recoil lug, patented base geometry, and 12-point ring fixation, MSM-02 guarantees absolute repeatability and high-performance reliability in tactical and long-range environments.

Tube diameter
Cant
Height
Color

Secure payement

EU Delivery

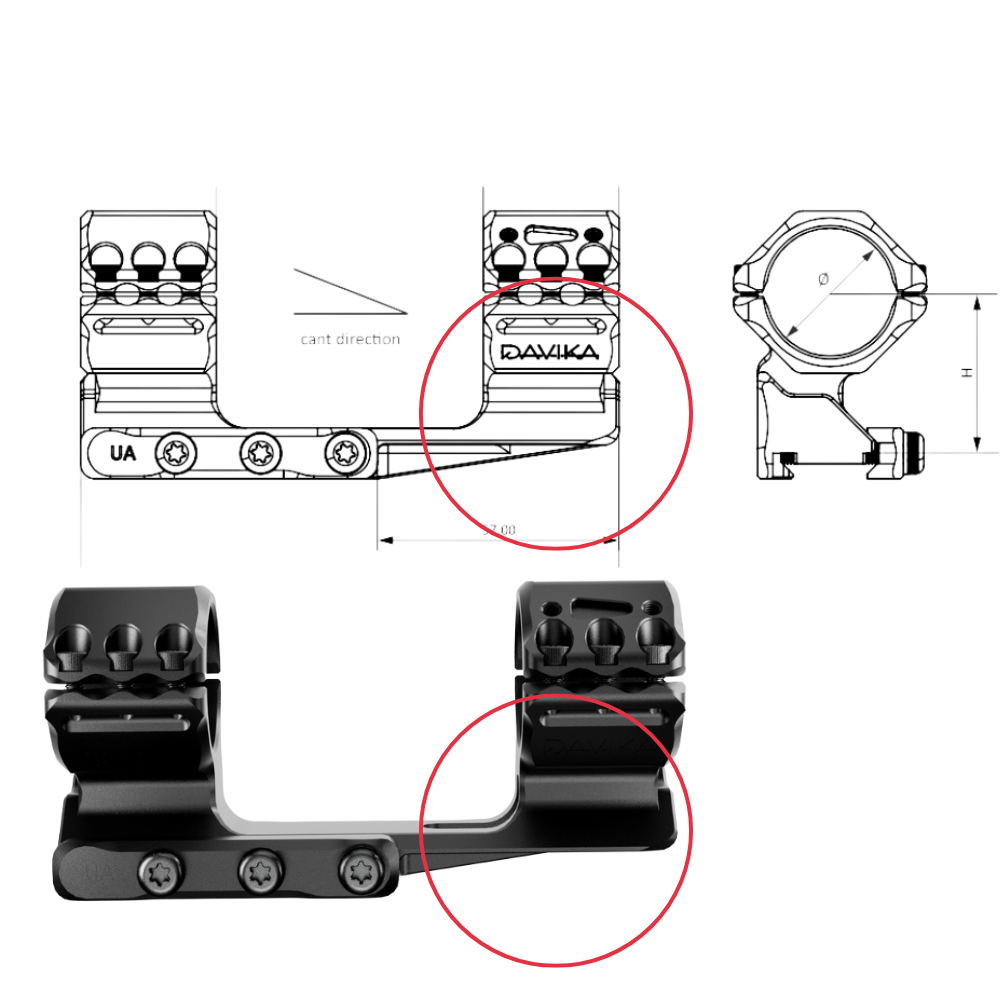

The MSM-02 is crafted with versatility at its core, offering a streamlined, lightweight solution for dynamic and precision shooting with AR platforms. Made from 7075-T6 aluminum—the strongest aluminum alloy available—it provides outstanding tensile strength without added bulk. Its cantilever configuration delivers ideal scope placement relative to the shooter’s eye, enhancing ergonomics and aiming comfort. The MSM-02 features DAVIKA’s SMAI mounting interface, allowing shooters to turn their mount into a fully modular system with quick accessory integration, such as illumination tools or rangefinders.

Optimized for speed and accuracy, it incorporates a patented geometry and integrated recoil lug to absorb impact and preserve zero. Hard anodized finish protects against scratches and environmental stress, while micron-level CNC machining ensures precise fitment and alignment. The ring interior includes micro-notches for secure optic retention, eliminating slippage even during rapid fire. The structural layout and 12 premium black screws prevent tube deformation, locking the scope in place with confidence.

Optional tilt configurations provide vertical scope adjustment for long-range shooting scenarios. With a reduced overall weight and uncompromising rigidity, the MSM-02 stands out as one of the market’s most innovative, adaptable mounts—built for professionals who rely on repeatable, mission-ready performance.

GUIDE : Choose The RIGHT DAVIKA Scope Mount
Material

7075-T6 aluminum (aerospace grade)

Finish

Type III hard anodizing (black)

Fasteners

Stainless Torx, black-coated

Standard

MIL-STD-1913 Picatinny interface

DAVIKA product range

DAVIKA designs and manufactures its equipment in Kharkiv (Ukraine) with a clear guiding line: one-piece mounts for professional shooters, machined to micrometric precision and engineered for repeatability under recoil. The brand deliberately embraces a technical aesthetic – “military-grade functionality with modern aesthetics” – built on a materials/process stack of 7075-T6 with MIL-A-8625 Type III hard anodizing. The goal is straightforward: secure attachment to Picatinny rails, flawless mechanical strength in harsh conditions, and consistent performance after the mount has been removed and re-installed.

The DAVIKA signature comes from geometry and process choices driven by repeatability:

  • Patented lower geometry + two integrated recoil lugs for a solid bearing surface and repeatable seating on Picatinny rails.

  • Micro-serrated rings + 12 screws for uniform clamping that does not mark the tube, manufactured with micrometric CNC precision.

  • SMAI interface on the MSM mounts to add accessories (dedicated modules) directly on the base, without random stacks of shims.

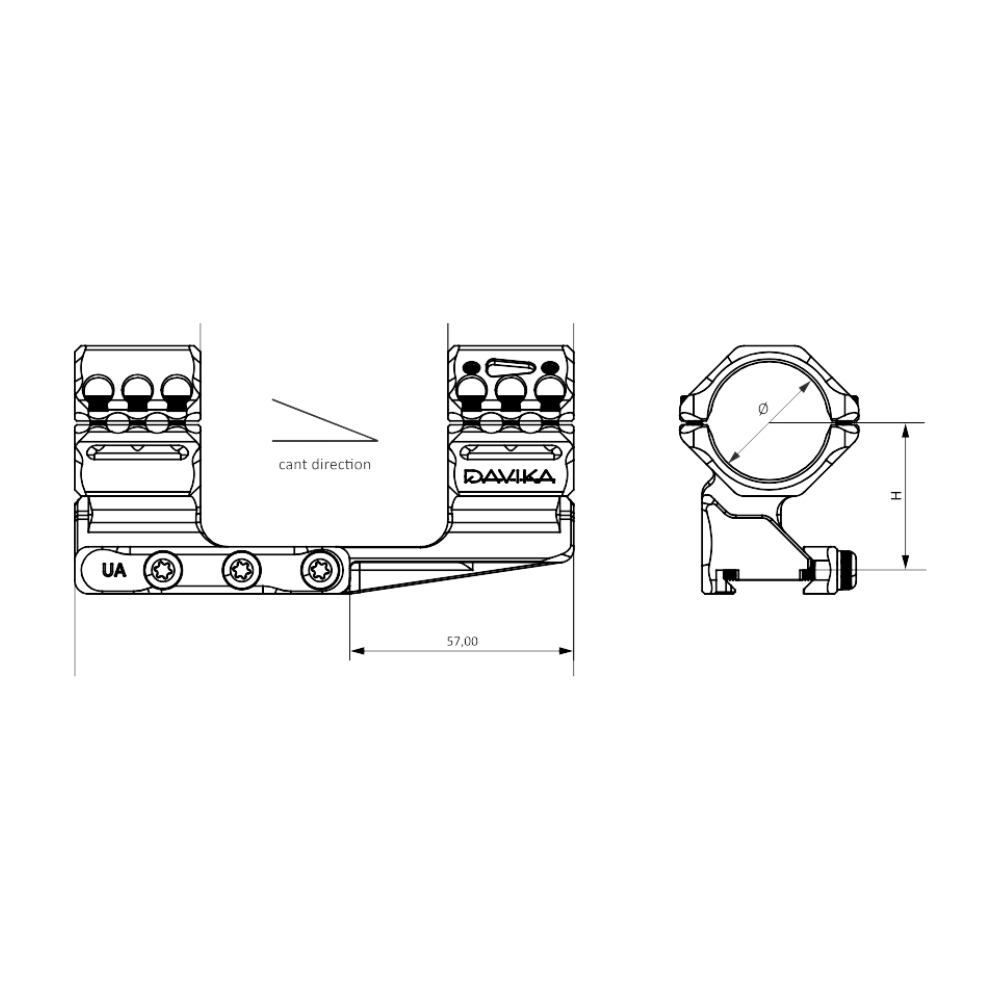

  • Cant options (0 / 3 / 6 / 9 mil, depending on model) to extend the available vertical adjustment range for long-range shooting.

  • Proven, reliable mechanical base: 7075-T6 one-piece body with Type III hard anodizing, integrated recoil lugs and a refined lower geometry for repeatable installation on Picatinny rails. Rings with internal serrations and 12 screws provide homogeneous retention without damaging the scope tube.

  • Rational modularity: the proprietary DAVIKA SMAI interface lets accessories be mounted directly on the base (rails, levels, dedicated accessories) with no shim stacking. The QD versions (MSM-03 / MSM-04) allow fast optic changes without sacrificing hold and with an excellent return to zero.

  • Clear, use-driven ecosystem: bolt-action (MSM-01 / MSM-03 / RSM-01), AR-10 / AR-15 (MSM-02 / MSM-04), cant control (LV-01 rail / LV-02 / LV-03 tube / LV-04 SMAI) and Garmin chronograph mount (PRM-01). The range is easy to read, references are traceable, and each product page comes with dedicated documentation.

THE MSM - 02

A one-piece mount factory-aligns both rings on a single body. This removes the uncertain alignment of separate rings, distributes loads more evenly over the scope tube and provides a single reference point on the rail. In use, this delivers uniform clamping, fewer parasitic stresses and superior repeatability when the optic is removed and re-installed (zero checks, maintenance). This design supports optical coaxiality, stability under recoil and consistent tracking of adjustments over the long term.

  • MSM-01 (fixed monobloc, bolt-action) — to be chosen for a high-precision bolt-action rifle when a rigid one-piece mount is required.

  • MSM-02 (fixed cantilever monobloc, AR-10 / AR-15) — the preferred option if the platform is an AR and a cantilever is needed to position the optic (extended eye relief) with no QD function. Otherwise, on a bolt-action rifle, stay with the MSM-01.

  • MSM-03 (QD monobloc) — to be selected when a Quick Detach is required to install/remove the scope quickly without loss of zero. If there is no QD requirement, the MSM-01 remains the preferred choice for a fixed mount.

  • MSM-04 (cantilever QD monobloc, AR-10 / AR-15) — to be retained when the platform is an AR and both cantilever + QD are required in a single mount. For a fixed bolt-action setup, stay with the MSM-01.

  • RSM-01 (two separate rings) — to be chosen when the desired architecture is two rings rather than a one-piece mount (preference or configuration constraints).

The mounts are machined

from a single solid block of 7075-T6 aerospace-grade aluminum, ensuring exceptional strength and precision.

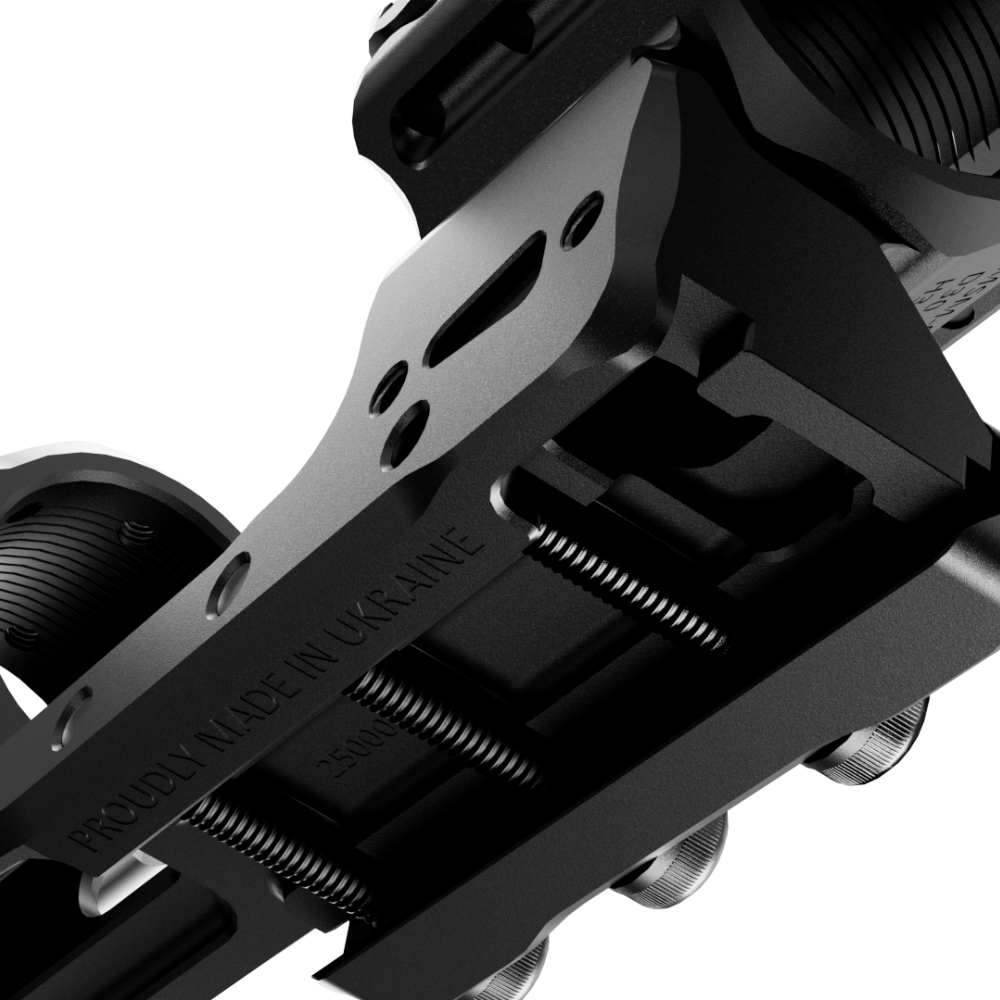

The GEN 2

mounts feature centrally positioned integrated recoil lugs, improving alignment and repeatability. These updated models are now available for purchase.

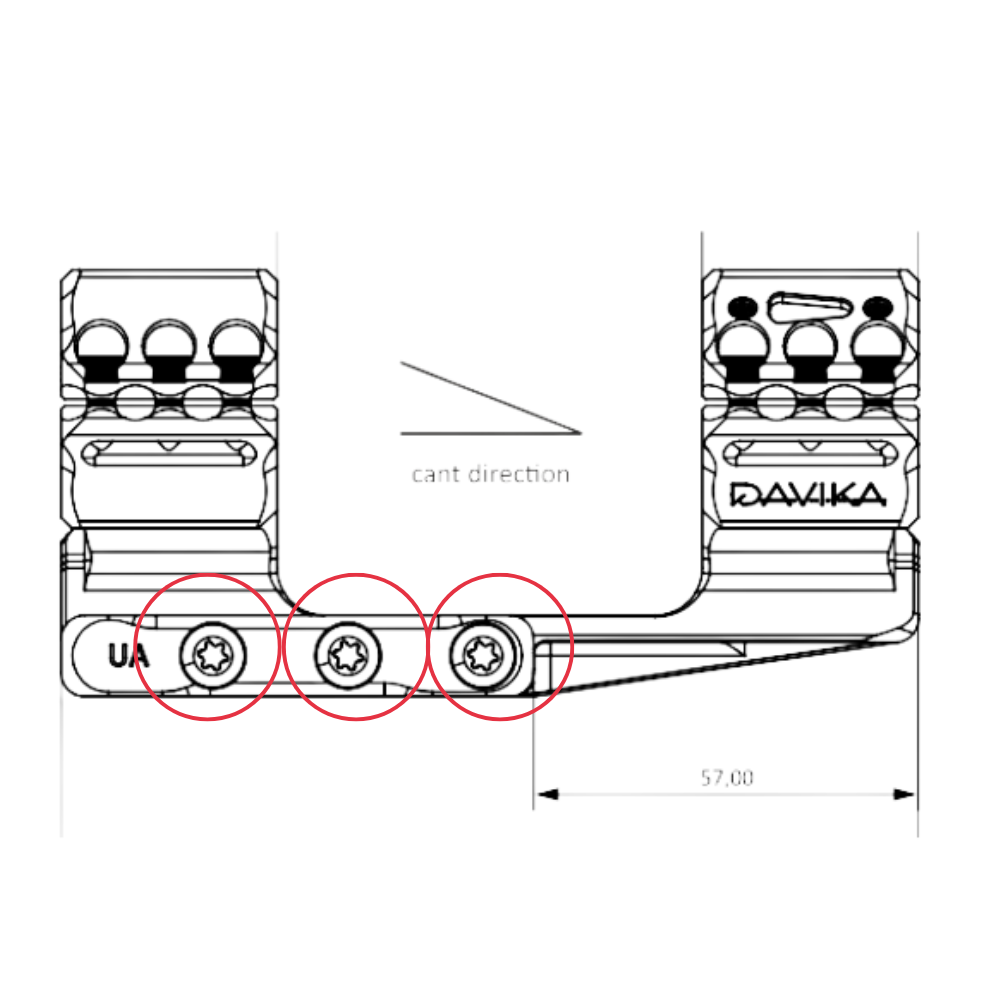

3 sturdy M5

Torx screws to secure the mount to the picatinny rail.

3 M4

Torx screws on each side of the rings for a total of 12 clamping points on the scope tube.

All parts are hard anodized

(Type III): surface very resistant to abrasion and better protected in harsh environments.

Optimized dimensions

and structural supports maximize rigidity while minimizing unnecessary weight.

Stainless steel

Torx-head screws with a high-quality black surface finish. The use of stainless steel and quality surface treatment prevents thread oxidation and ensures consistent torque and long-term tightening stability.

The finely machined internal grooves

create a more stable and consistent contact with the scope tube, eliminating point loads and ensuring a firm grip through precise geometry.

A proprietary Scope Mount Accessory Interface

(SMAI) with geometric indexing (triangles) to absorb recoil other than by the screws and guarantee the same positioning of accessories each time they are disassembled/reassembled.

Designed with multiple integrated accessory

mounting points, offering flexibility for customization and add-ons.

A continuously evolving ecosystem

of rails and accessories designed for the proprietary SMAI interface, with additional modules and attachments under active development.

Designed according

to the STANAG 4694 picatinny standard.

TORX BIT INCLUDED

with each mount

We strive to represent each product as accurately as possible; minor differences may occur (colors, finishes, markings). Images are illustrative; accessories not included. Dimensions and specifications are indicative and may change without notice.

Manufacturer technical files

These files are provided “as is,” without substantive modification. If inconsistencies arise, only the manufacturer’s latest official specifications prevail. Versions, part numbers, features, and visuals may change without notice. BHI does not guarantee the accuracy, completeness, or continuous availability of these documents and cannot be held liable for their use. Rights and content remain with their respective owners.

BHI technical files

While we take great care to deliver an accurate and faithful synthesis, these documents are provided for informational purposes and may include approximations, rounding (notably in imperial↔metric conversions), and residual errors. They are not a substitute for the manufacturer’s manuals or official specifications. Part numbers, dimensions, tolerances, compatibility, and performance data are indicative and may change without notice. Before any use, verify alignment with your firearm/equipment and the most recent manufacturer documentation. BHI disclaims liability for misuse, misinterpretation, or direct/indirect damages; the user is solely responsible for regulatory compliance, safety, and testing.

MSM-02
