Cutting Edge .500 365gr Lever Gun Safari Raptor (20)

Category SAFARI RAPTOR®
CUTTING EDGE BULLETS

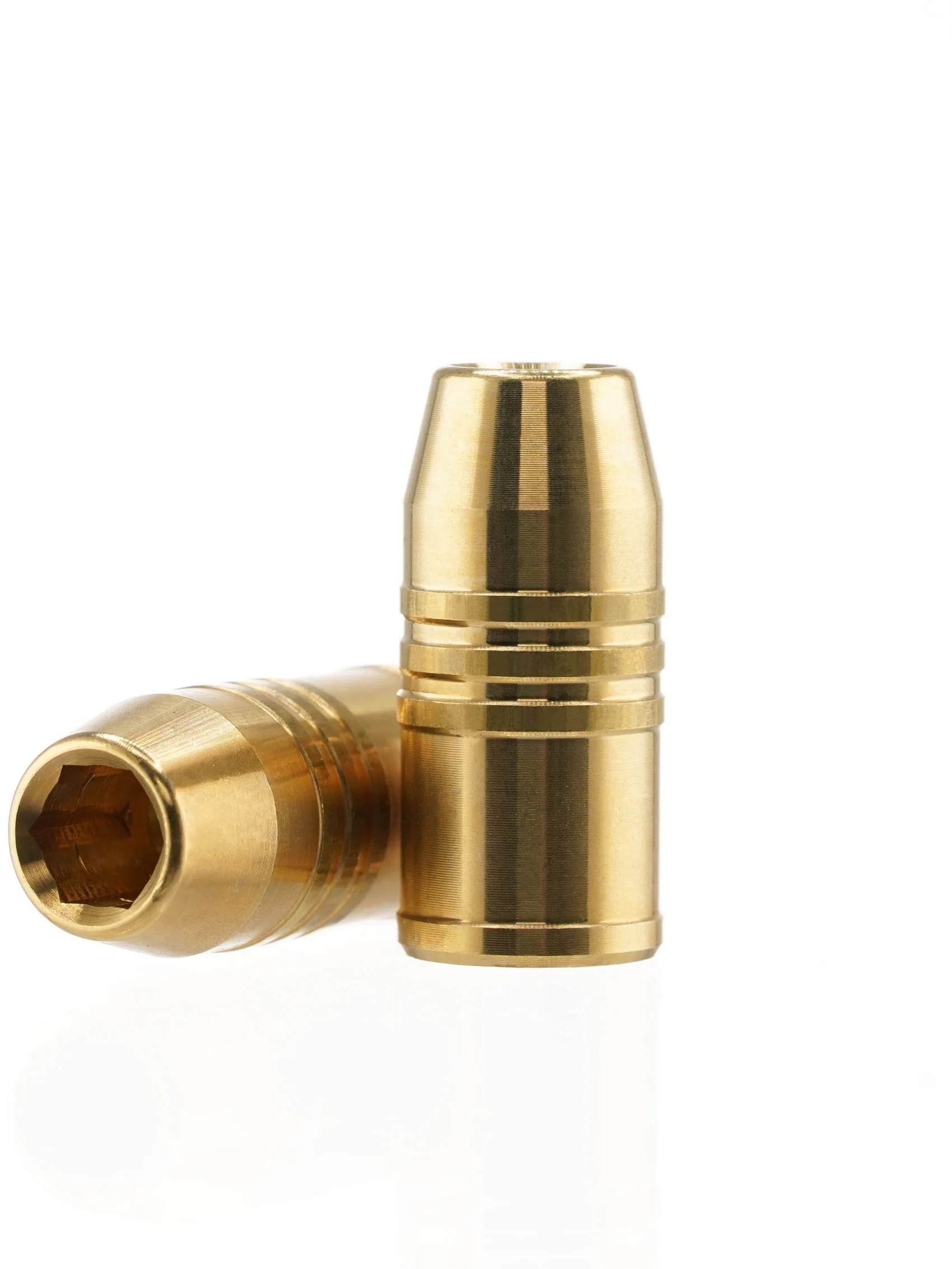

.500 / 365-gr Safari Raptor™ in monolithic brass (NonCon), purpose-built for lever guns (also suits bolt actions and double rifles). BBW#13™ 67% meplat and 3+1 band layout reduce barrel strain; band spacing is slightly narrower than NE versions for better neck tension. On impact, six petals shear at ~3″ and radiate while the solid base drives straight and very deep. G1 BC 0.160; minimum impact ≥ 1500 fps.

Use / positioning
Lever-gun oriented .500 hunting bullet for medium to large game, delivering controlled upset and straight-line, deep base penetration at typical lever velocities. Also compatible with bolt and double rifles.

Design & terminal effect
CNC-turned brass (NonCon). BBW#13™ 67% meplat for terminal stability; 3+1 bands lower friction/pressure. Six petals begin to shear around 3″ and move outward as the solid rear continues straight for maximum depth. Narrower band spacing vs. NE versions improves neck tension. Lead-free.

Key dimensions & thresholds

Caliber: .500
Weight: 365 grains
Bullet OAL: 1.091″
Projection length (nose): 0.460″
BC: G1 0.160 / G7 —
Minimum impact for expansion: ≥ 1500 fps
Required twist: standard; not recommended faster than 1:6″

Box & contents
20 bullets (bullets only; no powder/primers).

.500 — 365 gr Safari Raptor™, brass
Six petals ~3″; straight-driving solid base
OAL 1.091″ ; projection 0.460″
G1 BC 0.160 ; ≥ 1500 fps ; standard twist
Narrower band spacing for better neck tension
